輸入／輸出系統－TTY

作者：

TTY任務


在 TTY 任務中執行一個迴圈，此迴圈將輪詢每一個 TTY，處理它的事件，包括從鍵盤緩衝區讀取資料、顯示字元等內容。

  1. 並非每輪詢到某個 TTY 時，箭頭所對應的全部事件都會發生，只有當某個 TTY 對應的控制台是現在控制台時，它才可以讀取鍵盤緩衝區（虛線）
  2. TTY 可以對輸入的資料作更多的處理，但在這裡，我們只把它簡化為「顯示」一項。
  3. 雖然圖中鍵盤和顯示器的畫在 TTY 的外面，但應把鍵盤和顯示器算做每一個 TTY 的一部分，它們是公用的。
執行的過程如上，則輪詢到每個 TTY 不外乎作兩件事：
  1. 處理輸入：查看是不是現在 TTY，如果是則從鍵盤緩衝區讀取資料
  2. 處理輸出：如果有要顯示的內容則要顯示它
TTY 任務程式碼示意
與先前程式實現的區別在於：

  1. 每個 TTY 都應該有自己的讀和寫的動作。所以在 keyboard_read() 內部，函數需要了解自己是被哪一個 TTY 使用。我們透過為函數傳入一個參數來作到這一點，此參數指向當前 TTY 的指針。
  2. 為了讓輸入和輸出分離，被 keyboard_read() 使用的 in_process() 不應該在直接回顯字元，而應該將回顯的任務交給 TTY 來完成，這樣，我們就需要為每個 TTY 建立一塊緩衝區，用以放置將被回顯的字元。
  3. 每個 TTY 回顯字元時操作的 CONSOLE 是不同的，故每個 TTY 都應該有一個成員來記載其對應的 CONSOLE 資訊。

TTY 結構

#define TTY_IN_BYTES 256  /* tty input queue size */

struct s_console;

/* TTY */
typedef struct s_tty
{
    u32    in_buf[TTY_IN_BYTES];  /* TTY 輸入緩衝區 */
    u32*   p_inbuf_head;          /* 指向緩衝區中下一個空閒位置 */
    u32*   p_inbuf_tail;          /* 指向鍵盤任務應處理的鍵值 */
    int    inbuf_count;           /* 緩衝區中已經填充了多少 */


    struct s_console * p_console;
} TTY;

CONSOLE 結構

typedef struct s_console
{
    unsigned int current_start_addr; /* 當前顯示到了什麼位置 */
    unsigned int original_addr;      /* 當前控制台對應顯示卡記憶體位置 */
    unsigned int v_mem_limit;        /* 當前控制台占的顯示卡記憶體大小 */
    unsigned int cursor;             /* 當前光標位置 */
} CONSOLE;
TTY 任務程式碼示意

程式碼

include/console.h

/*++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
         console.h
++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
          Forrest Yu, 2005
++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++*/

#ifndef _ORANGES_CONSOLE_H_
#define _ORANGES_CONSOLE_H_


/* CONSOLE */
typedef struct s_console
{
 unsigned int current_start_addr; /* 當前顯示到了什麼位置   */
 unsigned int original_addr;  /* 當前控制台對應顯存位置 */
 unsigned int v_mem_limit;  /* 當前控制台占的顯存大小 */
 unsigned int cursor;   /* 當前光標位置 */
}CONSOLE;

#define SCR_UP 1 /* scroll forward */
#define SCR_DN -1 /* scroll backward */

#define SCREEN_SIZE  (80 * 25)
#define SCREEN_WIDTH  80

#define DEFAULT_CHAR_COLOR 0x07 /* 0000 0111 黑底白字 */


#endif /* _ORANGES_CONSOLE_H_ */

include/const.h

/*++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
                            const.h
++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
                                                    Forrest Yu, 2005
++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++*/

#ifndef _ORANGES_CONST_H_
#define _ORANGES_CONST_H_


/* EXTERN */
#define EXTERN extern /* EXTERN is defined as extern except in global.c */

/* 函數類型 */
#define PUBLIC  /* PUBLIC is the opposite of PRIVATE */
#define PRIVATE static /* PRIVATE x limits the scope of x */

/* Color */
/*
 * e.g. MAKE_COLOR(BLUE, RED)
 *      MAKE_COLOR(BLACK, RED) | BRIGHT
 *      MAKE_COLOR(BLACK, RED) | BRIGHT | FLASH
 */
#define BLACK   0x0     /* 0000 */
#define WHITE   0x7     /* 0111 */
#define RED     0x4     /* 0100 */
#define GREEN   0x2     /* 0010 */
#define BLUE    0x1     /* 0001 */
#define FLASH   0x80    /* 1000 0000 */
#define BRIGHT  0x08    /* 0000 1000 */
#define MAKE_COLOR(x,y) (x | y) /* MAKE_COLOR(Background,Foreground) */

/* GDT 和 IDT 中描述符的個數 */
#define GDT_SIZE 128
#define IDT_SIZE 256

/* 權限 */
#define PRIVILEGE_KRNL 0
#define PRIVILEGE_TASK 1
#define PRIVILEGE_USER 3
/* RPL */
#define RPL_KRNL SA_RPL0
#define RPL_TASK SA_RPL1
#define RPL_USER SA_RPL3

/* TTY */
#define NR_CONSOLES 3 /* consoles */

/* 8259A interrupt controller ports. */
#define INT_M_CTL 0x20 /* I/O port for interrupt controller         <Master> */
#define INT_M_CTLMASK 0x21 /* setting bits in this port disables ints   <Master> */
#define INT_S_CTL 0xA0 /* I/O port for second interrupt controller  <Slave>  */
#define INT_S_CTLMASK 0xA1 /* setting bits in this port disables ints   <Slave>  */

/* 8253/8254 PIT (Programmable Interval Timer) */
#define TIMER0         0x40 /* I/O port for timer channel 0 */
#define TIMER_MODE     0x43 /* I/O port for timer mode control */
#define RATE_GENERATOR 0x34 /* 00-11-010-0 :
        * Counter0 - LSB then MSB - rate generator - binary
        */
#define TIMER_FREQ     1193182L/* clock frequency for timer in PC and AT */
#define HZ             100  /* clock freq (software settable on IBM-PC) */

/* AT keyboard */
/* 8042 ports */
#define KB_DATA  0x60 /* I/O port for keyboard data
     Read : Read Output Buffer
     Write: Write Input Buffer(8042 Data&8048 Command) */
#define KB_CMD  0x64 /* I/O port for keyboard command
     Read : Read Status Register
     Write: Write Input Buffer(8042 Command) */
#define LED_CODE 0xED
#define KB_ACK  0xFA

/* VGA */
#define CRTC_ADDR_REG 0x3D4 /* CRT Controller Registers - Addr Register */
#define CRTC_DATA_REG 0x3D5 /* CRT Controller Registers - Data Register */
#define START_ADDR_H 0xC /* reg index of video mem start addr (MSB) */
#define START_ADDR_L 0xD /* reg index of video mem start addr (LSB) */
#define CURSOR_H 0xE /* reg index of cursor position (MSB) */
#define CURSOR_L 0xF /* reg index of cursor position (LSB) */
#define V_MEM_BASE 0xB8000 /* base of color video memory */
#define V_MEM_SIZE 0x8000 /* 32K: B8000H -> BFFFFH */

/* Hardware interrupts */
#define NR_IRQ  16 /* Number of IRQs */
#define CLOCK_IRQ 0
#define KEYBOARD_IRQ 1
#define CASCADE_IRQ 2 /* cascade enable for 2nd AT controller */
#define ETHER_IRQ 3 /* default ethernet interrupt vector */
#define SECONDARY_IRQ 3 /* RS232 interrupt vector for port 2 */
#define RS232_IRQ 4 /* RS232 interrupt vector for port 1 */
#define XT_WINI_IRQ 5 /* xt winchester */
#define FLOPPY_IRQ 6 /* floppy disk */
#define PRINTER_IRQ 7
#define AT_WINI_IRQ 14 /* at winchester */

/* system call */
#define NR_SYS_CALL     1

#endif /* _ORANGES_CONST_H_ */

include/global.h

/*++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
                            global.h
++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
                                                    Forrest Yu, 2005
++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++*/

/* EXTERN is defined as extern except in global.c */
#ifdef GLOBAL_VARIABLES_HERE
#undef EXTERN
#define EXTERN
#endif

EXTERN int  ticks;

EXTERN int  disp_pos;
EXTERN u8  gdt_ptr[6]; // 0~15:Limit  16~47:Base
EXTERN DESCRIPTOR gdt[GDT_SIZE];
EXTERN u8  idt_ptr[6]; // 0~15:Limit  16~47:Base
EXTERN GATE  idt[IDT_SIZE];

EXTERN u32  k_reenter;

EXTERN TSS  tss;
EXTERN PROCESS* p_proc_ready;

EXTERN int  nr_current_console;

extern PROCESS  proc_table[];
extern char  task_stack[];
extern  TASK            task_table[];
extern irq_handler irq_table[];
extern TTY  tty_table[];
extern  CONSOLE         console_table[];

include/proto.h

/*++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
                            proto.h
++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
                                                    Forrest Yu, 2005
++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++*/

/* klib.asm */
PUBLIC void out_byte(u16 port, u8 value);
PUBLIC u8 in_byte(u16 port);
PUBLIC void disp_str(char * info);
PUBLIC void disp_color_str(char * info, int color);

/* protect.c */
PUBLIC void init_prot();
PUBLIC u32 seg2phys(u16 seg);

/* klib.c */
PUBLIC void delay(int time);

/* kernel.asm */
void restart();

/* main.c */
void TestA();
void TestB();
void TestC();

/* i8259.c */
PUBLIC void put_irq_handler(int irq, irq_handler handler);
PUBLIC void spurious_irq(int irq);

/* clock.c */
PUBLIC void clock_handler(int irq);
PUBLIC void init_clock();

/* keyboard.c */
PUBLIC void init_keyboard();

/* tty.c */
PUBLIC void task_tty();
PUBLIC void in_process(TTY* p_tty, u32 key);

/* console.c */
PUBLIC void out_char(CONSOLE* p_con, char ch);
PUBLIC void scroll_screen(CONSOLE* p_con, int direction);

/* 以下是系統調用相關 */

/* proc.c */
PUBLIC  int     sys_get_ticks();        /* sys_call */

/* syscall.asm */
PUBLIC  void    sys_call();             /* int_handler */
PUBLIC  int     get_ticks();

include/tty.h

/*++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
    tty.h
++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
          Forrest Yu, 2005
++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++*/

#ifndef _ORANGES_TTY_H_
#define _ORANGES_TTY_H_


#define TTY_IN_BYTES 256 /* tty input queue size */

struct s_console;

/* TTY */
typedef struct s_tty
{
 u32 in_buf[TTY_IN_BYTES]; /* TTY 輸入緩衝區 */
 u32* p_inbuf_head;  /* 指向緩衝區中下一個空閒位置 */
 u32* p_inbuf_tail;  /* 指向鍵盤任務應處理的鍵值 */
 int inbuf_count;  /* 緩衝區中已經填充了多少 */

 struct s_console * p_console;
}TTY;


#endif /* _ORANGES_TTY_H_ */

kernel/console.c

/*++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
         console.c
++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
          Forrest Yu, 2005
++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++*/

/*
 迴車鍵: 把光標移到第一列
 換行鍵: 把光標前進到下一行
*/


#include "type.h"
#include "const.h"
#include "protect.h"
#include "string.h"
#include "proc.h"
#include "tty.h"
#include "console.h"
#include "global.h"
#include "keyboard.h"
#include "proto.h"

PRIVATE void set_cursor(unsigned int position);
PRIVATE void set_video_start_addr(u32 addr);
PRIVATE void flush(CONSOLE* p_con);

/*======================================================================*
      init_screen
 *======================================================================*/
PUBLIC void init_screen(TTY* p_tty)
{
 int nr_tty = p_tty - tty_table;
 p_tty->p_console = console_table + nr_tty;

 int v_mem_size = V_MEM_SIZE >> 1; /* 顯存總大小 (in WORD) */

 int con_v_mem_size                   = v_mem_size / NR_CONSOLES;
 p_tty->p_console->original_addr      = nr_tty * con_v_mem_size;
 p_tty->p_console->v_mem_limit        = con_v_mem_size;
 p_tty->p_console->current_start_addr = p_tty->p_console->original_addr;

 /* 默認光標位置在最開始處 */
 p_tty->p_console->cursor = p_tty->p_console->original_addr;

 if (nr_tty == 0) {
  /* 第一個控制台沿用原來的光標位置 */
  p_tty->p_console->cursor = disp_pos / 2;
  disp_pos = 0;
 }
 else {
  out_char(p_tty->p_console, nr_tty + '0');
  out_char(p_tty->p_console, '#');
 }

 set_cursor(p_tty->p_console->cursor);
}


/*======================================================================*
      is_current_console
*======================================================================*/
PUBLIC int is_current_console(CONSOLE* p_con)
{
 return (p_con == &console_table[nr_current_console]);
}


/*======================================================================*
      out_char
 *======================================================================*/
PUBLIC void out_char(CONSOLE* p_con, char ch)
{
 u8* p_vmem = (u8*)(V_MEM_BASE + p_con->cursor * 2);

 switch(ch) {
 case '\n':
  if (p_con->cursor < p_con->original_addr +
      p_con->v_mem_limit - SCREEN_WIDTH) {
   p_con->cursor = p_con->original_addr + SCREEN_WIDTH *
    ((p_con->cursor - p_con->original_addr) /
     SCREEN_WIDTH + 1);
  }
  break;
 case '\b':
  if (p_con->cursor > p_con->original_addr) {
   p_con->cursor--;
   *(p_vmem-2) = ' ';
   *(p_vmem-1) = DEFAULT_CHAR_COLOR;
  }
  break;
 default:
  if (p_con->cursor <
      p_con->original_addr + p_con->v_mem_limit - 1) {
   *p_vmem++ = ch;
   *p_vmem++ = DEFAULT_CHAR_COLOR;
   p_con->cursor++;
  }
  break;
 }

 while (p_con->cursor >= p_con->current_start_addr + SCREEN_SIZE) {
  scroll_screen(p_con, SCR_DN);
 }

 flush(p_con);
}

/*======================================================================*
                           flush
*======================================================================*/
PRIVATE void flush(CONSOLE* p_con)
{
        set_cursor(p_con->cursor);
        set_video_start_addr(p_con->current_start_addr);
}

/*======================================================================*
       set_cursor
 *======================================================================*/
PRIVATE void set_cursor(unsigned int position)
{
 disable_int();
 out_byte(CRTC_ADDR_REG, CURSOR_H);
 out_byte(CRTC_DATA_REG, (position >> 8) & 0xFF);
 out_byte(CRTC_ADDR_REG, CURSOR_L);
 out_byte(CRTC_DATA_REG, position & 0xFF);
 enable_int();
}

/*======================================================================*
     set_video_start_addr
 *======================================================================*/
PRIVATE void set_video_start_addr(u32 addr)
{
 disable_int();
 out_byte(CRTC_ADDR_REG, START_ADDR_H);
 out_byte(CRTC_DATA_REG, (addr >> 8) & 0xFF);
 out_byte(CRTC_ADDR_REG, START_ADDR_L);
 out_byte(CRTC_DATA_REG, addr & 0xFF);
 enable_int();
}



/*======================================================================*
      select_console
 *======================================================================*/
PUBLIC void select_console(int nr_console) /* 0 ~ (NR_CONSOLES - 1) */
{
 if ((nr_console < 0) || (nr_console >= NR_CONSOLES)) {
  return;
 }

 nr_current_console = nr_console;

 set_cursor(console_table[nr_console].cursor);
 set_video_start_addr(console_table[nr_console].current_start_addr);
}

/*======================================================================*
      scroll_screen
 *----------------------------------------------------------------------*
 滾屏.
 *----------------------------------------------------------------------*
 direction:
 SCR_UP : 向上滾屏
 SCR_DN : 向下滾屏
 其它 : 不做處理
 *======================================================================*/
PUBLIC void scroll_screen(CONSOLE* p_con, int direction)
{
 if (direction == SCR_UP) {
  if (p_con->current_start_addr > p_con->original_addr) {
   p_con->current_start_addr -= SCREEN_WIDTH;
  }
 }
 else if (direction == SCR_DN) {
  if (p_con->current_start_addr + SCREEN_SIZE <
      p_con->original_addr + p_con->v_mem_limit) {
   p_con->current_start_addr += SCREEN_WIDTH;
  }
 }
 else{
 }

 set_video_start_addr(p_con->current_start_addr);
 set_cursor(p_con->cursor);
}

kernel/global.c

/*++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
                            global.c
++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
                                                    Forrest Yu, 2005
++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++*/

#define GLOBAL_VARIABLES_HERE

#include "type.h"
#include "const.h"
#include "protect.h"
#include "tty.h"
#include "console.h"
#include "proc.h"
#include "global.h"
#include "proto.h"


PUBLIC PROCESS  proc_table[NR_TASKS];

PUBLIC char  task_stack[STACK_SIZE_TOTAL];

PUBLIC TASK task_table[NR_TASKS] = {{task_tty, STACK_SIZE_TTY, "tty"},
     {TestA, STACK_SIZE_TESTA, "TestA"},
     {TestB, STACK_SIZE_TESTB, "TestB"},
     {TestC, STACK_SIZE_TESTC, "TestC"}};

PUBLIC TTY  tty_table[NR_CONSOLES];
PUBLIC CONSOLE  console_table[NR_CONSOLES];

PUBLIC irq_handler irq_table[NR_IRQ];

PUBLIC system_call sys_call_table[NR_SYS_CALL] = {sys_get_ticks};

kernel/keyboard.c

/*++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
                            keyboard.c
++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
                                                    Forrest Yu, 2005
++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++*/

#include "type.h"
#include "const.h"
#include "protect.h"
#include "string.h"
#include "proc.h"
#include "tty.h"
#include "console.h"
#include "global.h"
#include "proto.h"
#include "keyboard.h"
#include "keymap.h"

PRIVATE KB_INPUT kb_in;

PRIVATE int code_with_E0;
PRIVATE int shift_l; /* l shift state */
PRIVATE int shift_r; /* r shift state */
PRIVATE int alt_l;  /* l alt state  */
PRIVATE int alt_r;  /* r left state  */
PRIVATE int ctrl_l;  /* l ctrl state  */
PRIVATE int ctrl_r;  /* l ctrl state  */
PRIVATE int caps_lock; /* Caps Lock  */
PRIVATE int num_lock; /* Num Lock  */
PRIVATE int scroll_lock; /* Scroll Lock  */
PRIVATE int column;

PRIVATE int caps_lock; /* Caps Lock  */
PRIVATE int num_lock; /* Num Lock  */
PRIVATE int scroll_lock; /* Scroll Lock  */

PRIVATE u8 get_byte_from_kbuf();
PRIVATE void    set_leds();
PRIVATE void    kb_wait();
PRIVATE void    kb_ack();

/*======================================================================*
                            keyboard_handler
 *======================================================================*/
PUBLIC void keyboard_handler(int irq)
{
 u8 scan_code = in_byte(KB_DATA);

 if (kb_in.count < KB_IN_BYTES) {
  *(kb_in.p_head) = scan_code;
  kb_in.p_head++;
  if (kb_in.p_head == kb_in.buf + KB_IN_BYTES) {
   kb_in.p_head = kb_in.buf;
  }
  kb_in.count++;
 }
}


/*======================================================================*
                           init_keyboard
*======================================================================*/
PUBLIC void init_keyboard()
{
 kb_in.count = 0;
 kb_in.p_head = kb_in.p_tail = kb_in.buf;

 shift_l = shift_r = 0;
 alt_l = alt_r   = 0;
 ctrl_l = ctrl_r  = 0;

 caps_lock   = 0;
 num_lock    = 1;
 scroll_lock = 0;

 set_leds();

        put_irq_handler(KEYBOARD_IRQ, keyboard_handler);/*設定鍵盤中斷處理程序*/
        enable_irq(KEYBOARD_IRQ);                       /*開鍵盤中斷*/
}


/*======================================================================*
                           keyboard_read
*======================================================================*/
PUBLIC void keyboard_read(TTY* p_tty)
{
 u8 scan_code;
 char output[2];
 int make; /* 1: make;  0: break. */

 u32 key = 0;/* 用一個整型來表示一個鍵。比如，如果 Home 被按下，
    * 則 key 值將為定義在 keyboard.h 中的 'HOME'。
    */
 u32* keyrow; /* 指向 keymap[] 的某一行 */

 if(kb_in.count > 0){
  code_with_E0 = 0;

  scan_code = get_byte_from_kbuf();

  /* 下面開始解析掃描碼 */
  if (scan_code == 0xE1) {
   int i;
   u8 pausebrk_scode[] = {0xE1, 0x1D, 0x45,
            0xE1, 0x9D, 0xC5};
   int is_pausebreak = 1;
   for(i=1;i<6;i++){
    if (get_byte_from_kbuf() != pausebrk_scode[i]) {
     is_pausebreak = 0;
     break;
    }
   }
   if (is_pausebreak) {
    key = PAUSEBREAK;
   }
  }
  else if (scan_code == 0xE0) {
   scan_code = get_byte_from_kbuf();

   /* PrintScreen 被按下 */
   if (scan_code == 0x2A) {
    if (get_byte_from_kbuf() == 0xE0) {
     if (get_byte_from_kbuf() == 0x37) {
      key = PRINTSCREEN;
      make = 1;
     }
    }
   }
   /* PrintScreen 被釋放 */
   if (scan_code == 0xB7) {
    if (get_byte_from_kbuf() == 0xE0) {
     if (get_byte_from_kbuf() == 0xAA) {
      key = PRINTSCREEN;
      make = 0;
     }
    }
   }
   /* 不是PrintScreen, 此時scan_code為0xE0緊跟的那個值. */
   if (key == 0) {
    code_with_E0 = 1;
   }
  }
  if ((key != PAUSEBREAK) && (key != PRINTSCREEN)) {
   /* 首先判斷Make Code 還是 Break Code */
   make = (scan_code & FLAG_BREAK ? 0 : 1);

   /* 先定位到 keymap 中的行 */
   keyrow = &keymap[(scan_code & 0x7F) * MAP_COLS];

   column = 0;

   int caps = shift_l || shift_r;
   if (caps_lock) {
    if ((keyrow[0] >= 'a') && (keyrow[0] <= 'z')){
     caps = !caps;
    }
   }
   if (caps) {
    column = 1;
   }

   if (code_with_E0) {
    column = 2;
   }

   key = keyrow[column];

   switch(key) {
   case SHIFT_L:
    shift_l = make;
    break;
   case SHIFT_R:
    shift_r = make;
    break;
   case CTRL_L:
    ctrl_l = make;
    break;
   case CTRL_R:
    ctrl_r = make;
    break;
   case ALT_L:
    alt_l = make;
    break;
   case ALT_R:
    alt_l = make;
    break;
   case CAPS_LOCK:
    if (make) {
     caps_lock   = !caps_lock;
     set_leds();
    }
    break;
   case NUM_LOCK:
    if (make) {
     num_lock    = !num_lock;
     set_leds();
    }
    break;
   case SCROLL_LOCK:
    if (make) {
     scroll_lock = !scroll_lock;
     set_leds();
    }
    break;
   default:
    break;
   }

   if (make) { /* 忽略 Break Code */
    int pad = 0;

    /* 首先處理小鍵盤 */
    if ((key >= PAD_SLASH) && (key <= PAD_9)) {
     pad = 1;
     switch(key) {
     case PAD_SLASH:
      key = '/';
      break;
     case PAD_STAR:
      key = '*';
      break;
     case PAD_MINUS:
      key = '-';
      break;
     case PAD_PLUS:
      key = '+';
      break;
     case PAD_ENTER:
      key = ENTER;
      break;
     default:
      if (num_lock &&
          (key >= PAD_0) &&
          (key <= PAD_9)) {
       key = key - PAD_0 + '0';
      }
      else if (num_lock &&
        (key == PAD_DOT)) {
       key = '.';
      }
      else{
       switch(key) {
       case PAD_HOME:
        key = HOME;
        break;
       case PAD_END:
        key = END;
        break;
       case PAD_PAGEUP:
        key = PAGEUP;
        break;
       case PAD_PAGEDOWN:
        key = PAGEDOWN;
        break;
       case PAD_INS:
        key = INSERT;
        break;
       case PAD_UP:
        key = UP;
        break;
       case PAD_DOWN:
        key = DOWN;
        break;
       case PAD_LEFT:
        key = LEFT;
        break;
       case PAD_RIGHT:
        key = RIGHT;
        break;
       case PAD_DOT:
        key = DELETE;
        break;
       default:
        break;
       }
      }
      break;
     }
    }

    key |= shift_l ? FLAG_SHIFT_L : 0;
    key |= shift_r ? FLAG_SHIFT_R : 0;
    key |= ctrl_l ? FLAG_CTRL_L : 0;
    key |= ctrl_r ? FLAG_CTRL_R : 0;
    key |= alt_l ? FLAG_ALT_L : 0;
    key |= alt_r ? FLAG_ALT_R : 0;
    key |= pad      ? FLAG_PAD      : 0;

    in_process(p_tty, key);
   }
  }
 }
}

/*======================================================================*
       get_byte_from_kbuf
 *======================================================================*/
PRIVATE u8 get_byte_from_kbuf()       /* 從鍵盤緩衝區中讀取下一個字節 */
{
        u8 scan_code;

        while (kb_in.count <= 0) {}   /* 等待下一個字節到來 */

        disable_int();
        scan_code = *(kb_in.p_tail);
        kb_in.p_tail++;
        if (kb_in.p_tail == kb_in.buf + KB_IN_BYTES) {
                kb_in.p_tail = kb_in.buf;
        }
        kb_in.count--;
        enable_int();

 return scan_code;
}

/*======================================================================*
     kb_wait
 *======================================================================*/
PRIVATE void kb_wait() /* 等待 8042 的輸入緩衝區空 */
{
 u8 kb_stat;

 do {
  kb_stat = in_byte(KB_CMD);
 } while (kb_stat & 0x02);
}


/*======================================================================*
     kb_ack
 *======================================================================*/
PRIVATE void kb_ack()
{
 u8 kb_read;

 do {
  kb_read = in_byte(KB_DATA);
 } while (kb_read =! KB_ACK);
}

/*======================================================================*
     set_leds
 *======================================================================*/
PRIVATE void set_leds()
{
 u8 leds = (caps_lock << 2) | (num_lock << 1) | scroll_lock;

 kb_wait();
 out_byte(KB_DATA, LED_CODE);
 kb_ack();

 kb_wait();
 out_byte(KB_DATA, leds);
 kb_ack();
}

kernel/clock.c, kernel/i8259.c, kernel/main.c, kernel/proc.c, kernel/protect.c, kernel/start.c, lib/klib.c (新增)

#include "tty.h"
#include "console.h"

kernel/tty.c

/*++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
                               tty.c
++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
                                                    Forrest Yu, 2005
++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++*/

#include "type.h"
#include "const.h"
#include "protect.h"
#include "string.h"
#include "proc.h"
#include "tty.h"
#include "console.h"
#include "global.h"
#include "keyboard.h"
#include "proto.h"

#define TTY_FIRST (tty_table)
#define TTY_END  (tty_table + NR_CONSOLES)

PRIVATE void init_tty(TTY* p_tty);
PRIVATE void tty_do_read(TTY* p_tty);
PRIVATE void tty_do_write(TTY* p_tty);
PRIVATE void put_key(TTY* p_tty, u32 key);

/*======================================================================*
                           task_tty
 *======================================================================*/
PUBLIC void task_tty()
{
 TTY* p_tty;

 init_keyboard();

 for (p_tty=TTY_FIRST;p_tty<TTY_END;p_tty++) {
  init_tty(p_tty);
 }
 select_console(0);
 while (1) {
  for (p_tty=TTY_FIRST;p_tty<TTY_END;p_tty++) {
   tty_do_read(p_tty);
   tty_do_write(p_tty);
  }
 }
}

/*======================================================================*
      init_tty
 *======================================================================*/
PRIVATE void init_tty(TTY* p_tty)
{
 p_tty->inbuf_count = 0;
 p_tty->p_inbuf_head = p_tty->p_inbuf_tail = p_tty->in_buf;

 init_screen(p_tty);
}

/*======================================================================*
    in_process
 *======================================================================*/
PUBLIC void in_process(TTY* p_tty, u32 key)
{
        char output[2] = {'\0', '\0'};

        if (!(key & FLAG_EXT)) {
  put_key(p_tty, key);
        }
        else {
                int raw_code = key & MASK_RAW;
                switch(raw_code) {
                case ENTER:
   put_key(p_tty, '\n');
   break;
                case BACKSPACE:
   put_key(p_tty, '\b');
   break;
                case UP:
                        if ((key & FLAG_SHIFT_L) || (key & FLAG_SHIFT_R)) {
    scroll_screen(p_tty->p_console, SCR_DN);
                        }
   break;
  case DOWN:
   if ((key & FLAG_SHIFT_L) || (key & FLAG_SHIFT_R)) {
    scroll_screen(p_tty->p_console, SCR_UP);
   }
   break;
  case F1:
  case F2:
  case F3:
  case F4:
  case F5:
  case F6:
  case F7:
  case F8:
  case F9:
  case F10:
  case F11:
  case F12:
   /* Alt + F1~F12 */
   if ((key & FLAG_ALT_L) || (key & FLAG_ALT_R)) {
    select_console(raw_code - F1);
   }
   break;
                default:
                        break;
                }
        }
}

/*======================================================================*
         put_key
*======================================================================*/
PRIVATE void put_key(TTY* p_tty, u32 key)
{
 if (p_tty->inbuf_count < TTY_IN_BYTES) {
  *(p_tty->p_inbuf_head) = key;
  p_tty->p_inbuf_head++;
  if (p_tty->p_inbuf_head == p_tty->in_buf + TTY_IN_BYTES) {
   p_tty->p_inbuf_head = p_tty->in_buf;
  }
  p_tty->inbuf_count++;
 }
}


/*======================================================================*
         tty_do_read
 *======================================================================*/
PRIVATE void tty_do_read(TTY* p_tty)
{
 if (is_current_console(p_tty->p_console)) {
  keyboard_read(p_tty);
 }
}


/*======================================================================*
         tty_do_write
 *======================================================================*/
PRIVATE void tty_do_write(TTY* p_tty)
{
 if (p_tty->inbuf_count) {
  char ch = *(p_tty->p_inbuf_tail);
  p_tty->p_inbuf_tail++;
  if (p_tty->p_inbuf_tail == p_tty->in_buf + TTY_IN_BYTES) {
   p_tty->p_inbuf_tail = p_tty->in_buf;
  }
  p_tty->inbuf_count--;

  out_char(p_tty->p_console, ch);
 }
}

Makefile

#########################
# Makefile for Orange'S #
#########################

# Entry point of Orange'S
# It must have the same value with 'KernelEntryPointPhyAddr' in load.inc!
ENTRYPOINT = 0x30400

# Offset of entry point in kernel file
# It depends on ENTRYPOINT
ENTRYOFFSET =   0x400

# Programs, flags, etc.
ASM  = nasm
DASM  = ndisasm
CC  = gcc
LD  = ld
ASMBFLAGS = -I boot/include/
ASMKFLAGS = -I include/ -f elf
CFLAGS  = -I include/ -m32 -c -fno-builtin -fno-stack-protector
LDFLAGS  = -s  -melf_i386 -Ttext $(ENTRYPOINT)
DASMFLAGS = -u -o $(ENTRYPOINT) -e $(ENTRYOFFSET)

# This Program
ORANGESBOOT = boot/boot.bin boot/loader.bin
ORANGESKERNEL = kernel.bin
OBJS  = kernel/kernel.o kernel/syscall.o kernel/start.o kernel/main.o\
     kernel/clock.o kernel/keyboard.o kernel/tty.o kernel/console.o\
     kernel/i8259.o kernel/global.o kernel/protect.o kernel/proc.o\
     lib/kliba.o lib/klib.o lib/string.o
DASMOUTPUT = kernel.bin.asm

# All Phony Targets
.PHONY : everything final image clean realclean disasm all buildimg

# Default starting position
nop :
 @echo "why not \`make image' huh? :)"

everything : $(ORANGESBOOT) $(ORANGESKERNEL)

all : realclean everything

image : realclean everything clean buildimg

clean :
 rm -f $(OBJS)

realclean :
 rm -f $(OBJS) $(ORANGESBOOT) $(ORANGESKERNEL)

disasm :
 $(DASM) $(DASMFLAGS) $(ORANGESKERNEL) > $(DASMOUTPUT)

# We assume that "a.img" exists in current folder
buildimg :
 mkdir tmp
 sleep 1
 sudo mount -o loop a.img tmp
 sleep 1
 sudo cp -fv boot/loader.bin tmp
 sudo cp -fv kernel.bin tmp
 sleep 1
 sudo umount tmp
 sleep 1
 rmdir tmp

boot/boot.bin : boot/boot.asm boot/include/load.inc boot/include/fat12hdr.inc
 $(ASM) $(ASMBFLAGS) -o $@ $<

boot/loader.bin : boot/loader.asm boot/include/load.inc boot/include/fat12hdr.inc boot/include/pm.inc
 $(ASM) $(ASMBFLAGS) -o $@ $<

$(ORANGESKERNEL) : $(OBJS)
 $(LD) $(LDFLAGS) -o $(ORANGESKERNEL) $(OBJS)

kernel/kernel.o : kernel/kernel.asm include/sconst.inc
 $(ASM) $(ASMKFLAGS) -o $@ $<

kernel/syscall.o : kernel/syscall.asm include/sconst.inc
 $(ASM) $(ASMKFLAGS) -o $@ $<

kernel/start.o: kernel/start.c include/type.h include/const.h include/protect.h include/string.h include/proc.h include/proto.h \
   include/global.h
 $(CC) $(CFLAGS) -o $@ $<

kernel/main.o: kernel/main.c include/type.h include/const.h include/protect.h include/string.h include/proc.h include/proto.h \
   include/global.h
 $(CC) $(CFLAGS) -o $@ $<

kernel/clock.o: kernel/clock.c
 $(CC) $(CFLAGS) -o $@ $<

kernel/i8259.o: kernel/i8259.c include/type.h include/const.h include/protect.h include/proto.h
 $(CC) $(CFLAGS) -o $@ $<

kernel/global.o: kernel/global.c include/type.h include/const.h include/protect.h include/proc.h \
   include/global.h include/proto.h
 $(CC) $(CFLAGS) -o $@ $<

kernel/protect.o: kernel/protect.c include/type.h include/const.h include/protect.h include/proc.h include/proto.h \
   include/global.h
 $(CC) $(CFLAGS) -o $@ $<

kernel/proc.o: kernel/proc.c
 $(CC) $(CFLAGS) -o $@ $<

kernel/keyboard.o: kernel/keyboard.c
 $(CC) $(CFLAGS) -o $@ $<

kernel/tty.o: kernel/tty.c

kernel/console.o: kernel/console.c
 $(CC) $(CFLAGS) -o $@ $<

lib/klib.o: lib/klib.c include/type.h include/const.h include/protect.h include/string.h include/proc.h include/proto.h \
   include/global.h
 $(CC) $(CFLAGS) -o $@ $<

lib/kliba.o : lib/kliba.asm
 $(ASM) $(ASMKFLAGS) -o $@ $<

lib/string.o : lib/string.asm
 $(ASM) $(ASMKFLAGS) -o $@ $<

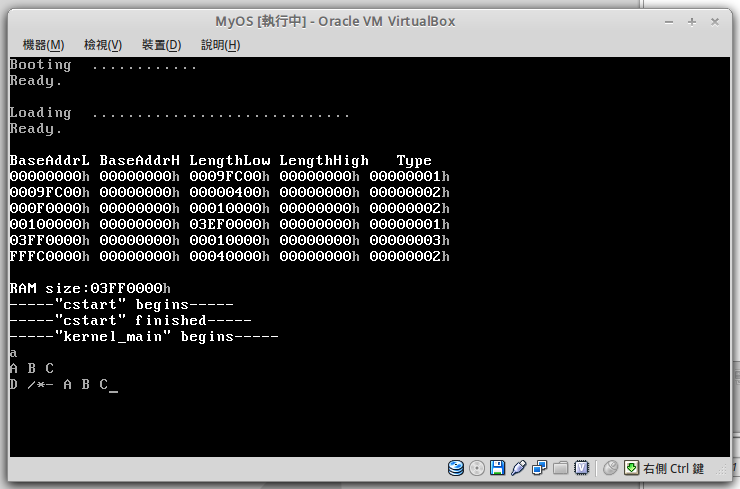

執行結果

目錄結構

.
├── a.img
├── boot
│   ├── boot.asm
│   ├── include
│   │   ├── fat12hdr.inc
│   │   ├── load.inc
│   │   └── pm.inc
│   └── loader.asm
├── include
│   ├── console.h
│   ├── const.h
│   ├── global.h
│   ├── keyboard.h
│   ├── keymap.h
│   ├── proc.h
│   ├── protect.h
│   ├── proto.h
│   ├── sconst.inc
│   ├── string.h
│   ├── tty.h
│   └── type.h
├── kernel
│   ├── clock.c
│   ├── console.c
│   ├── global.c
│   ├── i8259.c
│   ├── kernel.asm
│   ├── keyboard.c
│   ├── main.c
│   ├── proc.c
│   ├── protect.c
│   ├── start.c
│   ├── syscall.asm
│   └── tty.c
├── lib
│   ├── kliba.asm
│   ├── klib.c
│   └── string.asm
└── Makefile
標籤：

留言

張貼留言

這個網誌中的熱門文章

用 C# 批次控制 Word 合併列印

作者：
前由 我有全區的電話資料，問題在於我要依不同里別來製作出電話簿。結果如下圖： 單純採用合併列印無法達成我的需求。解決方法係用「功能變數」儲存上一個里別，與現在里別進行比較：若不同，則換頁。不過，這樣功能變數還蠻長的。最後，我還是採用 C# 來解決。 解決方案 用 C# 控制 WORD 中合併列印的「資料來源 Data Source」，給予不同里別的「sqlstatement」。迴圈處理不同的里別即可。但可預見其處理過程會很慢，不過還好，我可以不用在意它，有跑出結果即可。 程式碼 IList<string> areas = new List<string>() { "後壁", "侯伯", "嘉苳", "土溝", "嘉田", "嘉民", "菁豊", "崁頂", "後廍", "墨林", "菁寮", "新嘉", "頂長", "平安", "仕安", "竹新", "新東", "長安", "頂安", "福安", "烏樹" }; string root = @"D:\"; // 根目錄 string data = root + @"\data.docm"; // 資料檔（即資料來源） string template = root + @"\template.docx"; // 已設定好格式與合併欄位的 Word 檔 string output = @"d:\Final"; // 輸出之資料夾 object oMissing = System.Reflection.Missing.Va...
張貼留言
閱讀完整內容

VLC c# 順利編譯

作者：
原文網址： http://www.cnblogs.com/haibindev/archive/2011/12/21/2296173.html 原文作者： haibindev 原文標題：c#万能视频播放器 本文的重點在於修正 class VlcPlayer，使其能順利在 VC# Express 2010 .Net Framework 4 下順利編譯。 修正重點在於 CallingConvention = CallingConvention. StdCall 改成 CallingConvention = CallingConvention. Cdecl using System; using System.Runtime.InteropServices; using System.Security; using System.Text; namespace VlcDotNet { class VlcPlayer { private IntPtr libvlc_instance_; private IntPtr libvlc_media_player_; private double duration_; public VlcPlayer(string pluginPath) { string plugin_arg = "--plugin-path=" + pluginPath; string[] arguments = { "-I", "dummy", "--ignore-config", "--no-video-title", plugin_arg }; libvlc_instance_ = LibVlcAPI.libvlc_new(arguments); libvlc_media_player_ = LibVlcAPI.libvlc_media_player_new(libvlc_instance_); } public ...
3 則留言
閱讀完整內容

[Symfony+Doctrine] 透過非 Id 來使用 Pessimistic Lock

作者：
根據 文件 ，Doctrine 有 Pessimistic Lock，又分為兩種： LockMode::PESSIMISTIC_WRITE：對應至 MySQL 的 Select FOR UPDATE LockMode::PESSIMISTIC_READ：對應至 MySQL 的 Select LOCK IN SHARE MODE 差別在於 LOCK IN SHARE MODE 會將在 row 的資料鎖定(row-level lock)，在非同一交易(Transaction)下，不給寫入，其他交易可以讀取， 且可以繼續 Select LOCK IN SHARE MODE 。而 FOR UPDATE 不僅鎖定該資料，在非同一交易下，不給寫入，其它交易可以讀取， 但不能 Select LOCK IN SHARE MODE 。MySQL 文件有更詳細的比較與情境使用的說明，參考 網址 。 現在問題是，我們要完全採用 ORM 來處理資料。Doctrine 的文件提到 EntityManager::find 可以採用 Pessimistic Lock， 但 find 是透過 id 來處理 。而其他 find 系列函數（包括：findAll, findBy, findOneBy）皆不支援 LockMode。 因此，勢必要有方法來「透過非 id 來使用 Pessimistic Lock」。透過查看原始碼，簡單的方法是有的，解法之範例如下： 19 public function depositAction() 20 { 21 22 $em = $this->getDoctrine()->getManager(); 23 24 $em->transactional(function ($em) { 25 $entityName = 'AcmeTrainingBundle:Account'; 26 $lockMode = LockMode::PESSIMISTIC_READ; 27 $orderBy = null; 28 $...
張貼留言
閱讀完整內容
